Nidec e35163-55MIC Fan

Original price was: € 14,95.Current price is: € 7,95. incl. Vat

Origineel, uit console

Past op deze moederbordrevisies

1.0: past
1.1: past
1.2: past
1.3: past
1.4: past
1.6: past
1.6b: past

Weet je niet welke je hebt? Zo zoek je het in vijf minuten uit.

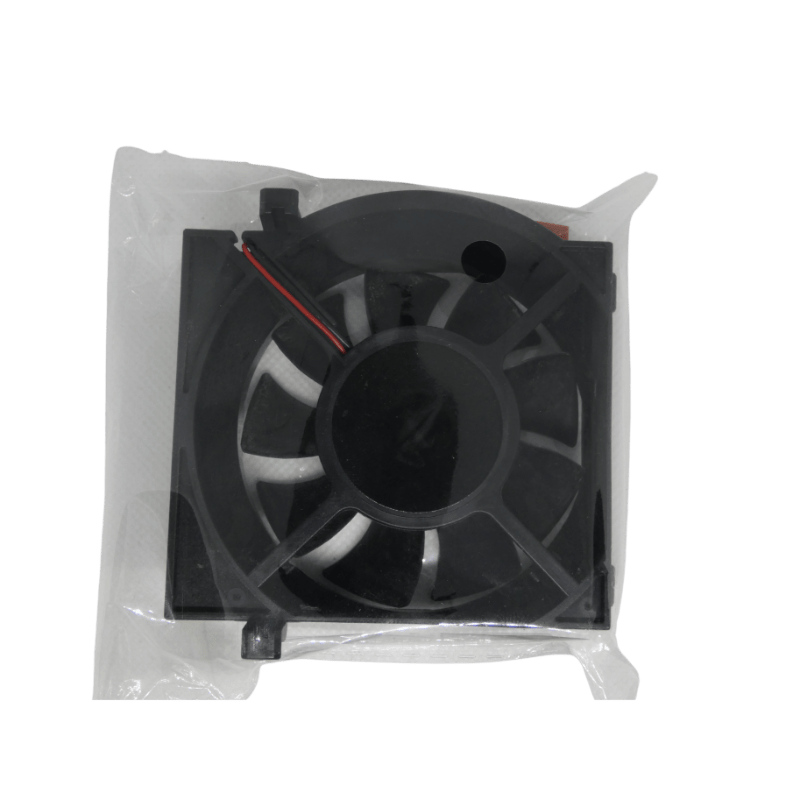

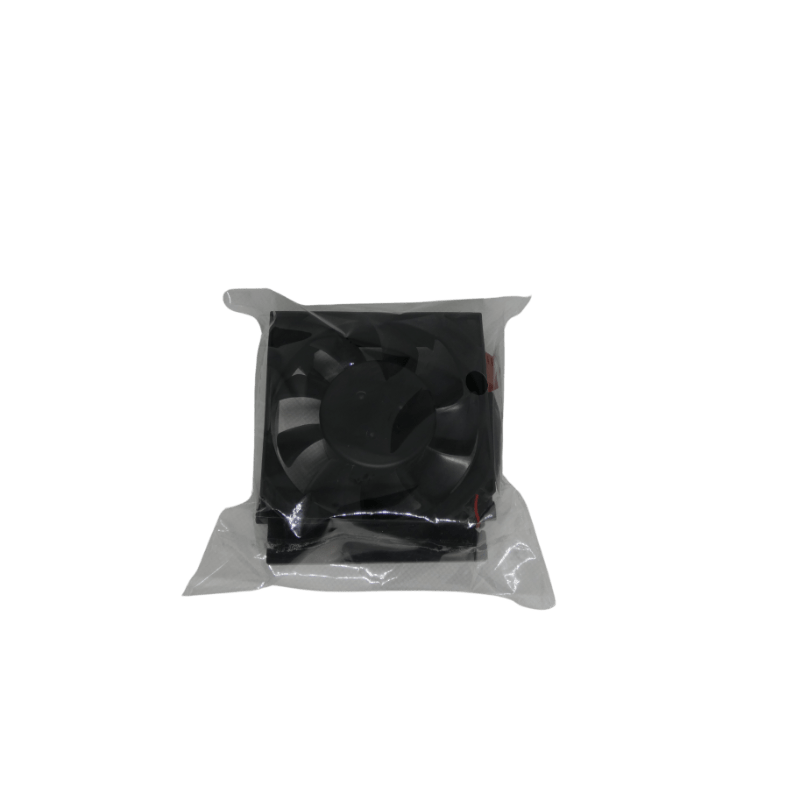

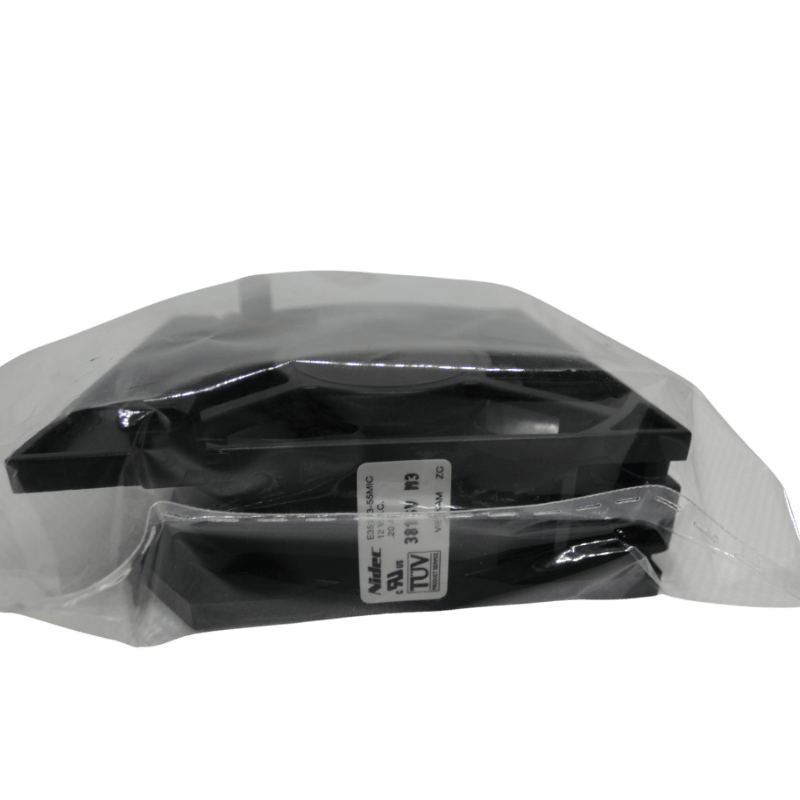

A Nidec E35163-55MIC — one of the OEM 70mm fans Microsoft fitted to the Original Xbox.

Condition Genuine OEM pull, tested

4 in stock

A Nidec E35163-55MIC — one of the OEM 70mm fans Microsoft fitted to the Original Xbox. Nidec is a serious fan manufacturer and these tend to survive better than some of the alternatives, but two decades of dust and dried bearing oil catch up with everything eventually. If your console has developed a low grinding hum, or the fan needs a nudge to start, replace it before the GPU pays for it.

Every unit is a tested pull: it’s been spun up and checked for noise and stall before listing.

What's in the box

1× Nidec E35163-55MIC 70mm fan with its connector

Installation

Difficulty: Easy. Open the console (T20 Torx), unplug and unclip the old fan, fit this one with the airflow arrow pointing the same way, plug in, close up. No soldering required. About 15 minutes.

Compatibility

Fits the Original Xbox 70mm fan mounting position. Microsoft second-sourced this fan slot, so Delta, Nidec, Minebea and Sunon units all appear in consoles from the same period and are broadly interchangeable in the shroud.

Over de fan-aansluiting op het bord. Het moederbord heeft op élke revisie, van 1.0 tot en met 1.6b, dezelfde fan-aansluiting: één rij van drie pinnen. Staat er bij een ventilator "2-pin", dan gaat dat over de stekker aan die ventilator, niet over het bord.

Eerst smeren, dan pas vervangen. Een ventilator die luidruchtig is geworden, is meestal niet stuk maar uitgedroogd. Doorsmeren geeft er vaak een tweede leven aan en kost niets. Helpt dat niet, dan zijn de lagers of de motor versleten en is vervangen de juiste stap. Let ook op dat het geluid van je console net zo goed uit de harde schijf of de dvd-drive kan komen.

Weight	0,75 kg
Dimensions	8,3 × 7,9 × 3,3 cm
Model	E35163-55MIC
Voltage	12 V DC
Current	0.20 A
Connector	3-pin
Condition	Genuine OEM pull, tested
Shipping weight	0.75 kg (listed weight looks wrong — a 70mm fan is ~75 g; likely a kg/g mix-up in the shop data)

Specifications

Brand	Nidec
Model	E35163-55MIC
Size	70 × 70 × 25 mm
Voltage	12 V DC
Current	0.20 A
Connector	3-pin
Airflow / noise
Condition	Genuine OEM pull, tested
Shipping weight	0.75 kg (listed weight looks wrong — a 70mm fan is ~75 g; likely a kg/g mix-up in the shop data)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Frequently asked questions

How is this different from the Delta or Minebea fan? Different manufacturer, same job and same mounting. Current draw and connector differ slightly — check the connector note above against your board.

Is it new? No, a genuine OEM pull. Tested and working, may show minor cosmetic wear.

Will it be quieter than my current fan? A healthy fan of any of these brands is much quieter than a dying one. If you want genuinely quiet, look at the Noctua option.

Does it come with screws or a grille? No — fan only.
